£6.95

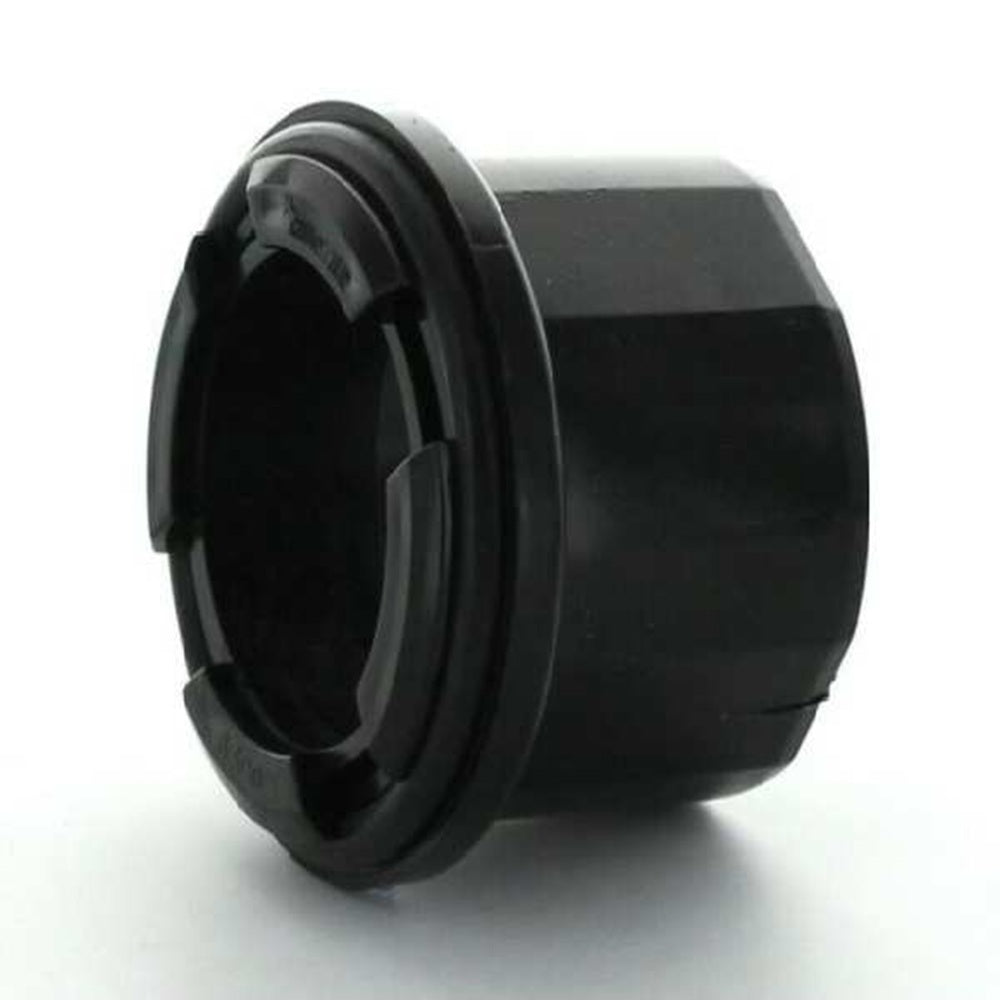

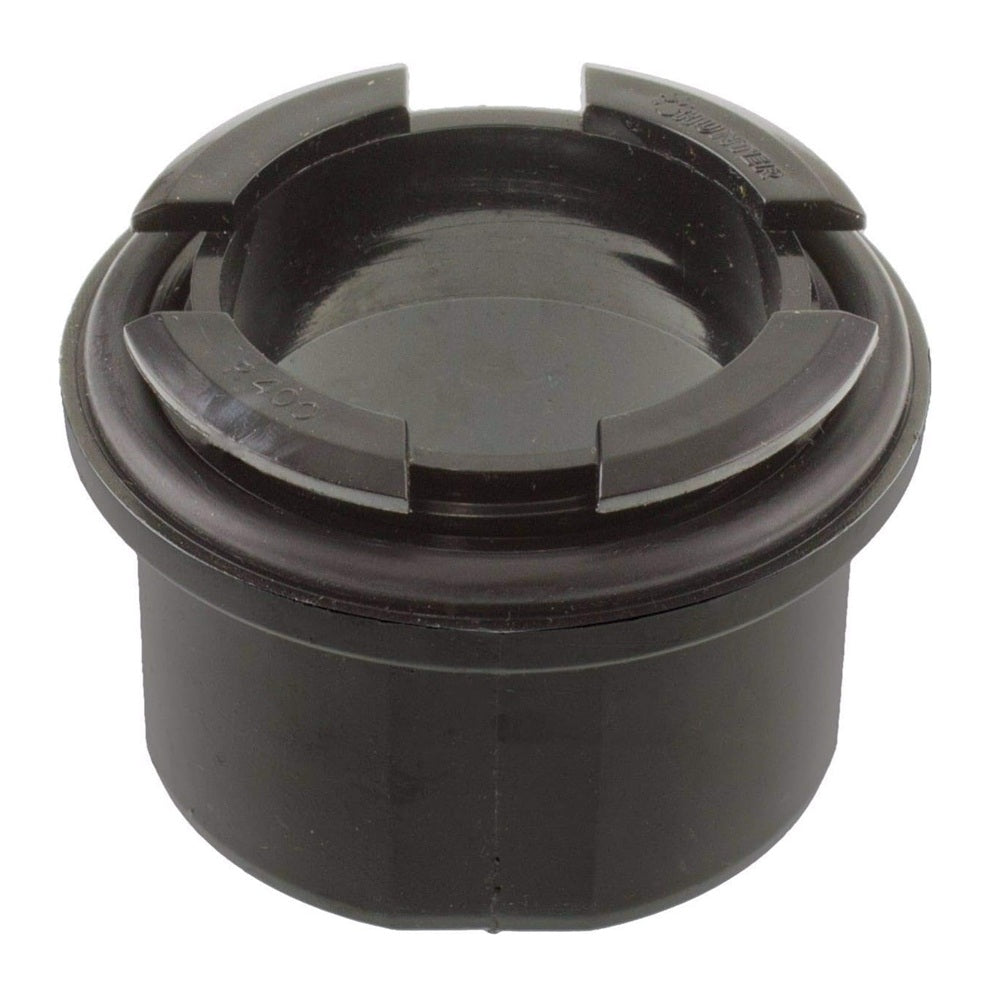

The R400 Uni-Fit Gutter Outlet is a universal spigot outlet designed to provide a simple and effective way of adding an additional downpipe to existing guttering.
Unlike conventional gutter outlets that are installed when the gutter is originally fitted, the Uni-Fit spigot can be installed retrospectively. This makes it particularly useful when an existing gutter system requires additional drainage capacity or when water regularly overflows from the gutter during heavy rainfall.
A 54mm–57mm diameter hole is required in the gutter to install the outlet. Once fitted, the spigot provides a connection for 68mm downpipes, including round, square and Regency-style downpipes.
Adding an extra downpipe can help improve the flow of rainwater through an existing gutter system.
If your gutters regularly overflow during heavy rain, this can be a sign that the existing outlets or downpipes are struggling to handle the volume of water. Installing an additional Uni-Fit outlet and downpipe can provide an additional route for rainwater to drain away.
The R400 Uni-Fit consists of two parts:
The outlet incorporates a gasket, helping create a secure and watertight connection between the outlet and gutter.
Specification
Product - R400 Uni-Fit Gutter Spigot Outlet
Type - Universal / Retrofit Gutter Outlet
Model - R400
Outlet Type - Spigot
Required Hole Size - 54mm–57mm diameter
Downpipe Size - 68mm
Downpipe Compatibility - Round, Square & Regency
Installation - Retrospective / Retrofit
Construction - Two-Part Outlet
Seal - Gasket Included
Colour Options - Black & White
✔ Universal Design – Suitable for a wide range of guttering and rainwater systems.
✔ Retrofit Installation – Add an outlet to existing guttering without removing the gutter or replacing a complete outlet unit.
✔ 68mm Downpipe Compatible – Designed to accept 68mm round, square and Regency-style downpipes.
✔ Improve Rainwater Flow – An ideal solution for gutter systems where additional drainage capacity is required.
✔ Watertight Connection – The integrated gasket helps provide a secure seal between the gutter and outlet.
To install the R400 Uni-Fit outlet, a 54mm–57mm diameter hole must first be made in the gutter at the desired outlet position.
The underside section is fitted beneath the gutter and provides the connection sleeve for the downpipe. The upper section is then screwed into the underside component, securing the outlet in position. The supplied gasket helps ensure a watertight seal.
Always measure the existing gutter and downpipe system before installation to ensure compatibility.
